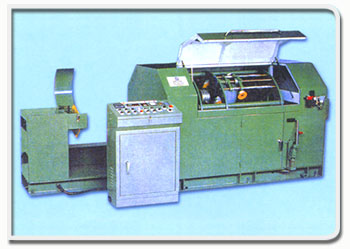

單絞機
型式
Model |
TA-600 |
TA-800 |
供給線徑
Inlet Wire Dia |
1.00mmø-3.00mmøPVC線 |
絞距
Lay Pitch |
30mm-150mm |
30mm-180mm |
回轉速
No. Of Revolutions |
Max.500RPM |
Max.450RPM |
主驅動馬達
Main Drive Motor |
10HP感應馬達+變頻器
10HP Induction Motor Inveter Control |
絞合線徑
Winding Wire Dia. |
1mmø-10mmø |
帶子尺寸
Type Size |
盤徑25mmø,寬度10-30mm,孔徑50mmø |
卷取軸
Take-Up Bobbin |
600mmøO.D
x300mmøI.D.
x340mm I.W.
x80mmø孔 |
800mmøO.D
x350mmøI.D.
x430mm I.W.
x80mmø孔 |
|
